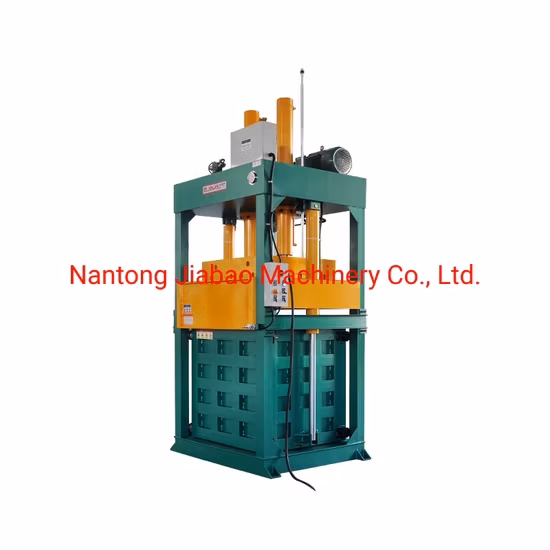

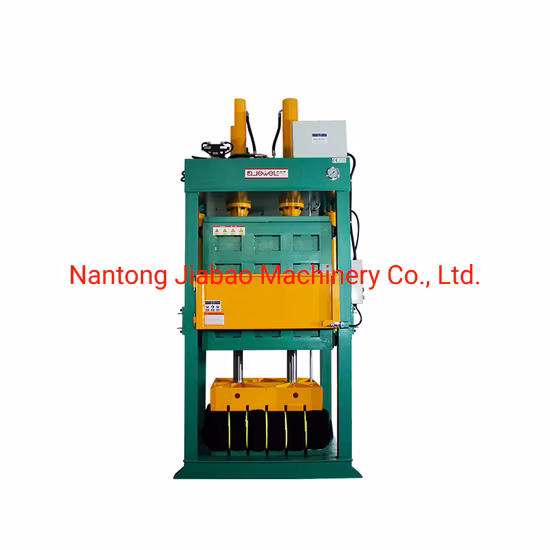

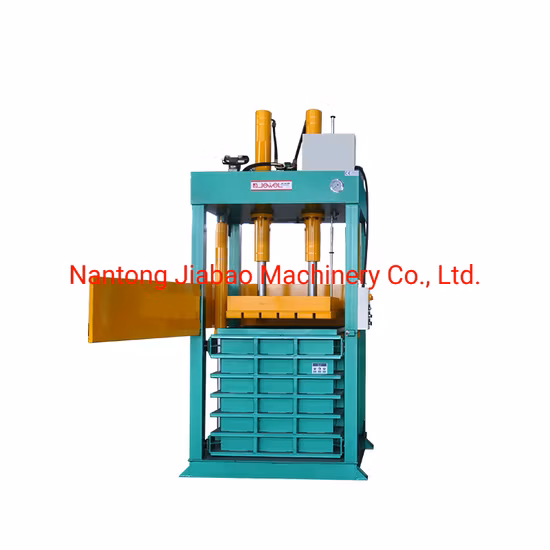

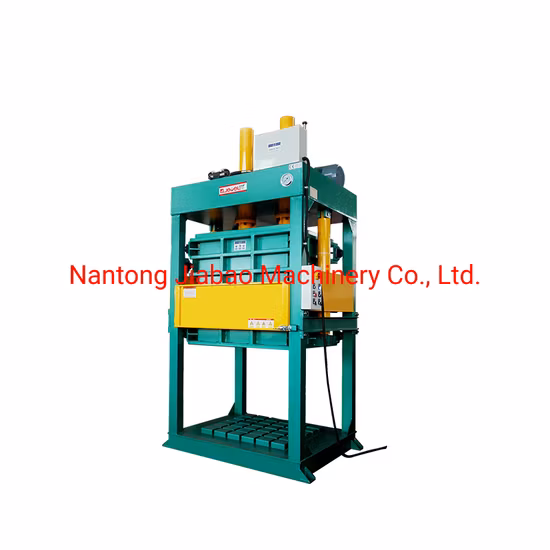

Vertical Hydraulic Textile Baling Press Machine Used Clothing Baler Machine Clothes Bale Machine
Basic Info
| Model NO. | JP120LT |
| After-sales Service | Lifetime After-Sales Service |
| Warranty | 12 Months |
| Factory Direct Sell | Yes |
| Machine Weight | About 4.2t |
| Certificates | CE, ISO |
| Machine Power | 22kw |
| Application | Used Clothes/Waste Textile |
| Hydraulic Force | 120ton |
| Transport Package | Film Wrapping or Wooden Case |
| Specification | About 1850*1400*4680mm |
| Trademark | JEWEL |
| Origin | Nantong City, Jiangsu Province, China |
| HS Code | 8422400090 |
| Production Capacity | 50/Month |
Product Description
It is widely used in compressing and baling used clothes, bedclothes, fiber, textile, dry food. Features:
* This machine is vertical structure with lifted chamber, suitable for clothes, bedding and fiber products.* It controlled by electrical buttons, easy to operate.* Assemble scram buttons, installed separately, and operated more safety.* Suitable for products in need of outer package, bales are trapped in "#"shape.* 6 models have different bale size and compression, suitable for customers who have different requirements for bale weight and capacity.* Adopt England brand sealing parts; improve the life time of oil cylinder.* Oil pipe joint adopts conical without gasket form, no oil leakage phenomenon.* Adopt Taiwan brand superposition type valve group.* Adopt connect motor with pump directly, to ensure 100% concentricity, and extend use life of pump. Machine Parameters
| Model | JP30LT |
| Hydraulic power | 30Ton |
| bale size(L*W*H) | 700*400*(350-600)mm |
| Feed opening size(L*H) | 700*460mm |
| Chamber Size(L*W*H) | 700*400*1200mm |
| Bale weight | 40-60Kg |
| Voltage | can be customized |
| Power | 7.5KW/10HP |
| Machine size(L*W*H) | 1200*840*3780mm |
| Weight | 1900Kg |
| Model | JP50LT |
| Hydraulic power | 50Ton |
| Packaging size/(L*W*H) | 760*520*(400-800) mm |
| Feed opening size/(L*H) | 760*460mm |
| Chamber Size (L*W*H) | 760*520*1250 mm |
| Bale weight | 80-120Kg |
| Voltage | can be customized |
| Power | 11KW/15HP |
| Machine size(L*W*H) | 1400*850*3780mm |
| Weight | 2300Kg |
| Model | JP60LT | JP80LT |
| Hydraulic power | 60Ton | 80Ton |
| Packaging size/(L*W*H) | 1000*700*(400-800)mm | 1100*800*(400-900) mm |
| Feed opening size/(L*H) | 1000*460mm | 1200*460mm |
| Chamber Size (L*W*H) | 1000*700*1250 mm | 1100*800*1250 mm |
| Bale weight | 150-200Kg | 200-300Kg |
| Voltage | can be customized | can be customized |
| Power | 15KW/20HP | 18.5KW/25HP |
| Machine size(L*W*H) | 1750*1270*3780mm | 1850*1370*3800mm |
| Weight | 2800Kg | 3500Kg |
| Model | JP120LT | JP150LT |
| Hydraulic power | 120Ton | 150Ton |
| Packaging size/(L*W*H) | 1100*800*(500-1250) mm | 1100*1000*(700-1450) mm |
| Feed opening size/(L*H) | 1100*600mm | 1100*700mm |
| Chamber Size (L*W*H) | 1100*800*1650 mm | 1100*1000*1950 mm |
| Bale weight | 350-550Kg | 450-600Kg |
| Voltage | can be customized | can be customized |
| Power | 22KW/30HP | 30KW/40HP |
| Machine size(L*W*H) | 1850*1400*4680mm | 1900*1600*5250mm |
| Weight | 4200Kg | 5800Kg |
Detailed Photos
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our company was established in 1995,we have 25 years manufacturing experience until now,our machines have been exported to more than 120 countries all over the world.Our plant is located in Nantong city,Jiangsu province,2 hours driving from Shanghai.Our factory covers an area of 33300 square meters,welcome to visit!
Pre-Sales
*We own pre-sales , selling and after sales service teams , to ensure provide professional and integration service for each project .
Selling
*We have engineer with rich project experience , who are available to prospect customer's site, formulate layout and confirm the feasibility of program, final participate the installation and system testing.
After-Sales
*7X24hours after-sales service
-Service phone line keep 24 hours unblocked
-All emails will get response within 10 hours
-Any needed machine parts can be supplied with professional guiding and ordinary.
-Collect after-sale-service feedback from customer, keep improving.
*we have rich experience after sale staff who have the ability of handling emergency situation, that can ensure machine normal working and customer's production go smoothly.
